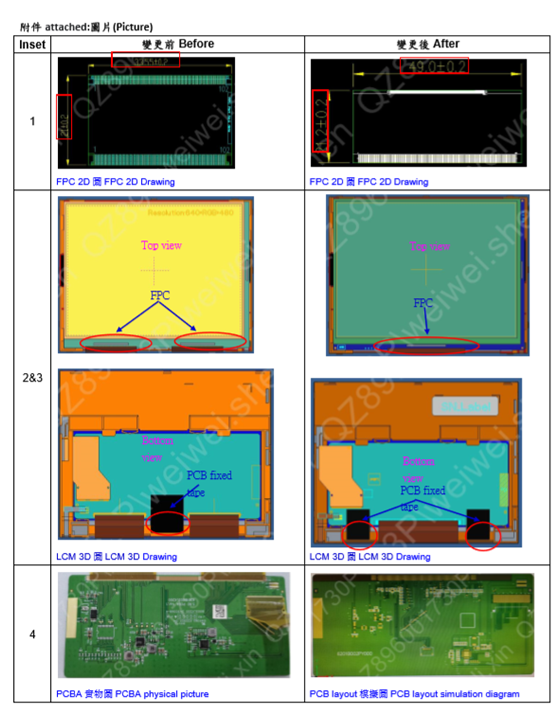

1

FPC 變更

FPC Changed

2 個 FPC(長 x 寬：

33.55mmx21mm)

2FPC(length*width:

33.55mmx21mm)

隨 cell 變更

Change with cell

2

膠框變更

Frame Changed

2 個 FPC 折彎槽，1 個 PCBA 固定貼膠位置擋墻 2 FPC Bend   through，1 PCBA

fixed tape position retaining wall

1 個 FPC 折彎槽，2 個 PCBA 固定貼膠位置擋墻 1 FPC Bend   through，2 PCBA

fixed tape position retaining wall

隨 FPC 變更

Change with FPC

3

PCBA   固定膠帶PCBA   fixed tape

1 條 (長 x 寬：

22.5mmx19.5mm)

1pcs (length x width:

22.5mmx19.5mm)

2條 (長x寬：18.5mmx14mm)

2pcs (length x width:

18.5mmx14mm)

隨膠框變更

Change with Frame

4

PCBA 變更

PCBA Changed

DC-DC power IC: NT50312

AC VCOM

DC-DC power IC: NT50312

AC VCOM

1. DC-DC power IC: 取消(由

sourcer IC control)

DC-DC power IC: cancel

(controlled by sourcer IC)

2. 導入 DC VCOM

DC VCOM

3. 增加 FPC CONN(8pin)   for OTP VCOM  (僅在 INX廠內生產使用)

Add FPC CONN (8pin) for

OTP VCOM ( just used in

INX plant)

隨 cell & driver IC 變更

Change with cell &

driver IC

5

Source Driver IC

2PCs NT39403BH-D/4II

Vendor: Novatek

1PC ILI6192A-01T00CB

Vendor: ILItek

隨 cell 變更

Change with cell

6

Gate Driver IC

1PC NT39207BH-D/4ID

Vendor: Novatek

1PC ILI5481A-00000CB

Vendor: ILItek

隨 cell 變更

Change with cell

7

cell 變更

群創 FAB1

INNOLUX FAB1

群創 T0

INNOLUX T0

外型不變

Shape unchanged
