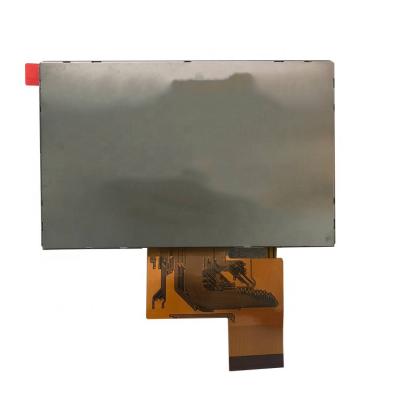

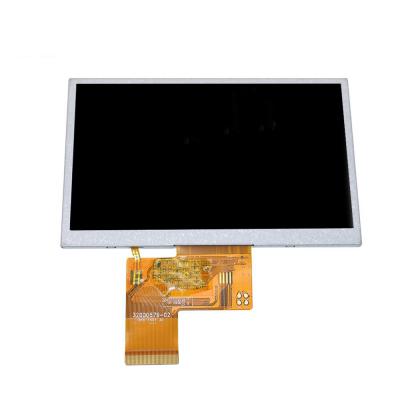

LCD Model

PC043TN25-B9.3

LCD size

4.3 inch(Diagonal)

Driver element

a-Si TFT active matrix

Resolution

480 × 3 (RGB) × 272

Luminance

450 cd/m2

Display mode

Normally White, Transmissive

Dot pitch

0.066(W) × 0.198(H) mm

Active area

95.04(W) × 53.856(H) mm

Module size

105.5(W) × 67.2(H) ×3.0(D) mm

Viewing angle

70/70/50/70

Contrast ratio

500：1

Surface treatment

Anti-Glare

Color arrangement

RGB-stripe

Interface

Digital

Backlight Power consumption

TBD W(Typ.)

Panel Power consumption

TBD W (Typ.)

Weight

TBD (Typ.)

Operation temperature

-20 ~70℃

Storage temperature

-30 ~80℃
