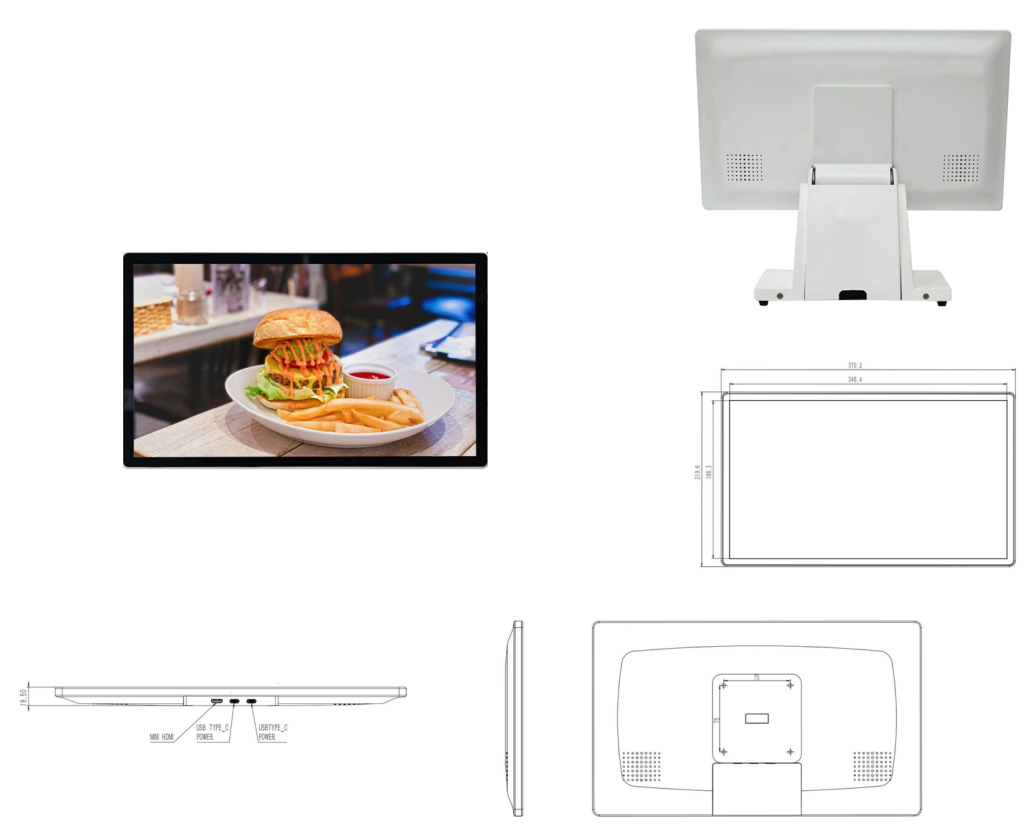

15.6” LED Backlight LCD Display
Advanced computer interface technology
Low Power Consumption
Slim appearance with narrow frame
Adjustable Tilt Stand Base
PCT TOUCH Optional
Support IP54 Rating for Flat Screen Front Panel
全国统一服务热线:
0571-81061650
客服QQ:3443748160
王先生:18258890703(微信同号)
洪先生:18868786964(微信同号)
地址:浙江省杭州市西湖区西园九路8号A402
15.6” LED Backlight LCD Display
Advanced computer interface technology
Low Power Consumption
Slim appearance with narrow frame
Adjustable Tilt Stand Base
PCT TOUCH Optional
Support IP54 Rating for Flat Screen Front Panel
15.6” LED Backlight LCD Display
Advanced computer interface technology
Low Power Consumption
Slim appearance with narrow frame
Adjustable Tilt Stand Base
PCT TOUCH Optional
Support IP54 Rating for Flat Screen Front Panel
Specification
Model |
TC15 |
|
DISPLAY |
Screen |
15.6” |
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Max. Resolution |
1920(H)*1080(V) |
|
Viewable Size(H*V) |
344.16(H)*193.59(V)mm |
|
Pixel Pitch(H*V) |
0.17925(H)*0.17925(V)mm |
|
Brightness(Typ.) |
220cd/m² |
|
Contrast Ratio(Typ.) |
700:1 |
|
Viewing Angle(H*V) |
170/170(Typ.) |
|
Display Color |
262K |
|
Response Time(Tr/Tf) |
25ms |
|
I/O INTERFACE |
Video Input |
TYPE-C*2/Mini HDMI*1 |
Touch Interface |
Built-in TYPE-C |
|
ELECTRICAL |
Power Input |
TYPE-C_PD |
Power Supply |
DC5V / 2A |
|
Power Consumption |
10W max |
|
GENERAL |
Operating Condition |
Temp:0 °C ~ 50 °C,Hum.:20~80% |
Storage Condition |
Temp:-20°C ~ 60 °C,Hum.:15~85% |
|
OPTION |
Touch Panel |
PCT Touch |
Mounts |
VESA standard 75*75mm |
